Database Overview

Introduction​

The Scoriet database is a comprehensive relational database system designed to support the Enterprise Code Generator platform. It manages users, projects, database schemas, code templates, forms, reports, kanban boards, messaging, and a complete marketplace ecosystem for templates.

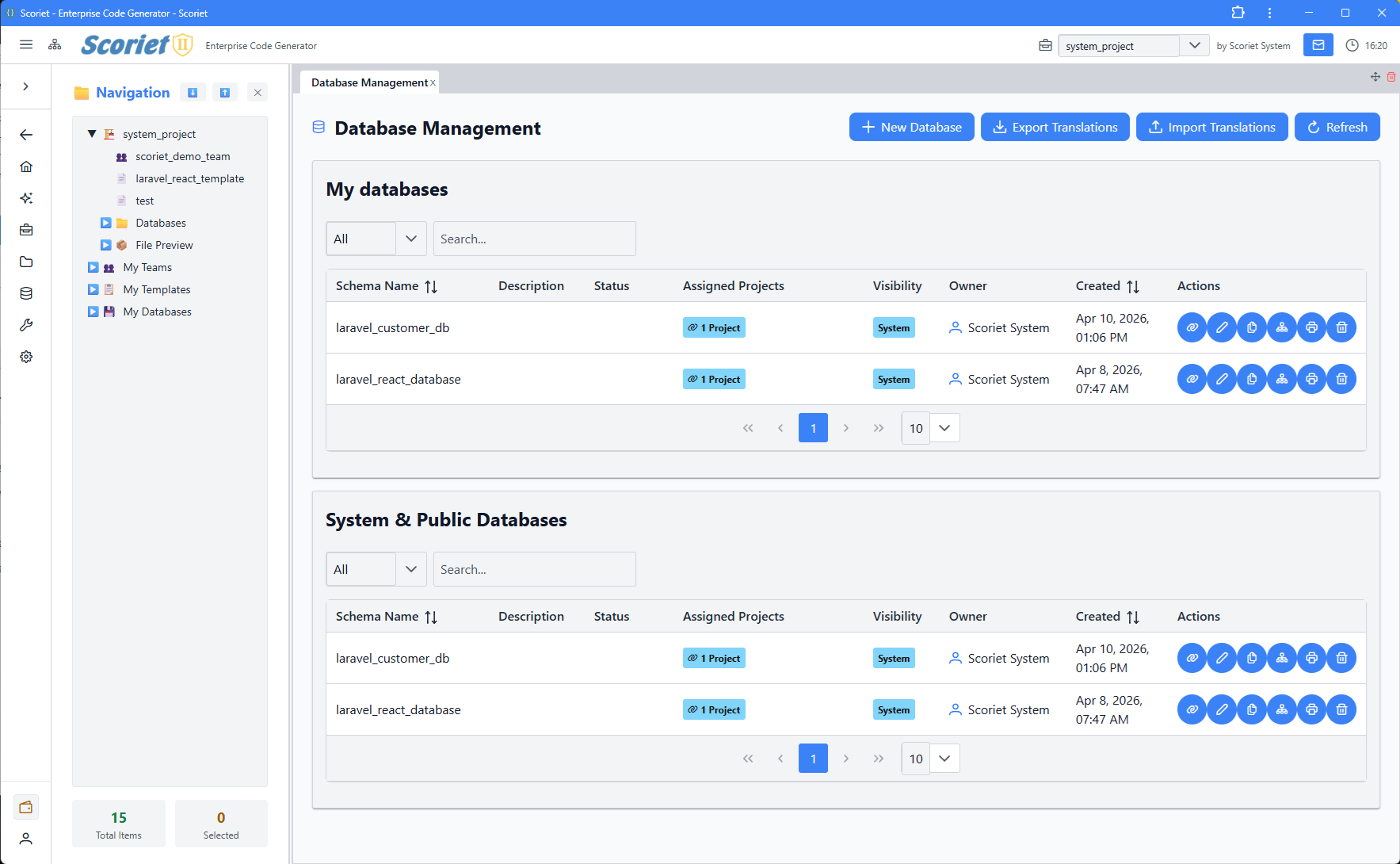

Database Management Database Management panel showing parsed schemas with status, visibility, and action buttons

The database architecture is built around several key domains:

  • Core Domain: User management, authentication, projects, and teams
  • Schema Domain: Database schema modeling, versioning, and storage
  • Template Domain: Code template storage, versioning, and marketplace
  • Generation Domain: Code generation tracking, logs, and code adjustments
  • Form Domain: Form designer, layout, and element management
  • Report Domain: Report patterns, layouts, and design elements
  • Kanban Domain: Project kanban boards, cards, columns, and workflows
  • Messaging Domain: User-to-user and broadcast messaging system
  • Support Domain: Languages, permissions, settings, credit system, and more

Database Technology​

  • Database Management System: MySQL (primary), with support for PostgreSQL, SQLite, and MS-SQL
  • ORM Framework: Laravel Eloquent
  • Migrations: Laravel Database Migrations for version control
  • Total Tables: 93 tables
  • Key Relationships: 180+ foreign key relationships

Core Architecture Principles​

Multi-Tenancy & Ownership​

  • Most tables include an owner_id foreign key to the users table
  • Project-level data is isolated through project_id foreign keys
  • Team-based access control via teams and team_members tables

Soft Deletes & Visibility​

  • Schema visibility levels: private, public, deleted
  • Template visibility: private, public, store
  • Many entities support soft delete through status/visibility fields

Versioning & History​

  • Schemas support multiple versions via schema_versions table
  • Templates track template type: original, cloned, linked
  • Form sets can be cloned to support variations
  • Generation logs maintain complete history of code generation

JSON for Flexible Data​

  • Complex configuration stored as JSON: settings, tags, layout_data
  • Template variables and project configurations use JSON columns
  • Form and report design elements stored as JSON structures

Credit & Monetization System​

  • User credit balance tracking in users table
  • Template pricing in credits or euros
  • Credit transactions audit trail via credit_transactions
  • Template purchase tracking and payout system

Security & Authentication​

  • Two-factor authentication fields in users table
  • Passport OAuth2 tokens for API authentication
  • User inactivity tracking and warnings
  • Git provider credential management

Table Categories​

Core Tables (8)​

  • users - User accounts with authentication and profile
  • projects - Project definitions with deployment configuration
  • teams - Team organizational structure
  • team_members - Team membership and roles
  • team_roles - Custom team roles
  • team_role_permissions - Role-based access control
  • permissions - System permissions registry
  • user_git_providers - Git repository integration

Schema Tables (8)​

  • schemas - Database schema definitions
  • schema_versions - Schema version history
  • schema_tables - Table definitions within schemas
  • schema_fields - Column/field definitions
  • schema_constraints - Database constraints
  • schema_constraint_columns - Constraint column mappings
  • schema_foreign_key_references - Foreign key definitions
  • schema_foreign_key_reference_columns - FK column mappings

Template Tables (7)​

  • templates - Template definitions
  • template_files - Template file content
  • template_variables - Template input variables
  • template_fingerprints - Content hashing for change detection
  • template_media - Template marketing media (logos, images, videos)
  • template_purchases - Marketplace purchase tracking
  • template_reviews - User reviews and ratings

Template Associations (3)​

  • template_schema_dependencies - Schema requirements for templates
  • template_file_field_assignments - Form field visibility in template files

Project Relationship Tables (9)​

  • project_members - Project team membership
  • project_schemas - Linked/cloned schemas in projects
  • project_template_usage - Template usage in projects
  • project_template_variable_values - Template variable configuration
  • project_applications - Project join requests
  • project_invitations - Project invitations
  • project_attachments - File attachments for projects
  • project_form_set - Form set associations
  • project_kanban_roles - Kanban board roles

Generation Tables (4)​

  • project_generations - Code generation records
  • project_generation_trees - Dependency trees for generations
  • generation_logs - Detailed generation logs
  • code_adjustments - Code adjustment rules

Form Tables (4)​

  • form_sets - Form set definitions
  • form_windows - Form window types (create, edit, list, report)
  • form_elements - UI containers and layout elements
  • form_item_placements - Field placements within forms

Report Tables (5)​

  • report_patterns - Report pattern definitions
  • report_pattern_forms - Report form configurations
  • report_pattern_elements - Report layout sections
  • report_layout_elements - Report content elements
  • report_images - Report images/media

Kanban Tables (7)​

  • kanban_boards - Kanban board per project
  • kanban_columns - Board columns/swimlanes
  • kanban_cards - Task cards
  • kanban_card_activities - Card activity log
  • kanban_card_assignees - Card assignments
  • kanban_card_comments - Card comments
  • kanban_labels - Label definitions

Messaging Tables (4)​

  • message_threads - Message conversations
  • messages - Message content
  • message_thread_participants - Thread participants
  • message_attachments - Message attachments

Support Tables (14)​

  • languages - Supported languages
  • schema_translations - Schema text translations
  • project_translations - Project localization
  • project_report_patterns - Report pattern associations
  • settings - System-wide settings
  • subscriptions - User subscription management
  • credit_transactions - Credit audit trail
  • deployment_logs - Deployment history
  • performance_metrics - System metrics
  • tickets - Support tickets
  • payouts - Seller payouts
  • payout_items - Payout line items
  • pages - CMS pages
  • visitor_logs - Website visitor tracking
  • registration_invites - User registration invites
  • cli_tasks - CLI command tasks
  • cli_devices - CLI device registration
  • push_subscriptions - Web push notifications

Key Relationships​

One-to-Many Relationships​

  • User owns many Projects, Schemas, Templates, Forms, Reports, etc.
  • Project has many Members, Generations, Attachments, Kanban Boards
  • Schema has many Versions, Tables
  • Schema Table has many Fields
  • Template has many Files, Variables, Reviews

Many-to-Many Relationships​

  • Projects ↔ Schemas (via project_schemas)
  • Projects ↔ Templates (via project_template_usage)
  • Teams ↔ Roles ↔ Permissions (via join tables)
  • Kanban Cards ↔ Labels (via kanban_card_label)
  • Templates ↔ Schema Dependencies (via template_schema_dependencies)

Polymorphic Associations​

  • Code adjustments can reference projects or templates
  • Credit transactions support multiple transaction types
  • Performance metrics track various action types

Database Constraints​

Primary Keys​

All tables use bigIncrements('id') for auto-incrementing primary keys.

Foreign Key Actions​

  • Cascade Delete: Used for dependent records (template files when template deleted)
  • Set Null: Used when relationship is optional (nullable foreign keys)
  • Restrict: Default for critical relationships

Unique Constraints​

  • Email addresses (users.email, registration_invites.email)
  • Git provider credentials per user
  • Schema name per owner
  • Template variable name per template
  • Join codes in projects

Indexes​

  • Owner/visibility composite indexes for efficient filtering
  • Project/user composite indexes for queries
  • Foreign key indexes for relationship lookups
  • Timestamp indexes for date-range queries

Data Types​

Integer Fields​

  • bigIncrements: Primary keys, user references
  • unsignedBigInteger: Foreign keys
  • unsignedSmallInteger: Diagram sizing parameters
  • unsignedTinyInteger: Short values
  • integer: Counts, versions, credits

String Fields​

  • string(100+): Names, slugs, codes
  • text/longText: Descriptions, content, JSON
  • enum: Status fields, types, roles

Decimal/Currency​

  • decimal(10,2) or decimal(12,2): Pricing, earnings, amounts

Date/Time​

  • timestamp: All CRUD operations use timestamps
  • nullable: For optional dates (deletions, verifications)

Design Patterns​

Soft Deletes​

Implemented through visibility or status enums rather than Laravel's soft delete trait, allowing for "deleted" visibility levels in schemas while maintaining referential integrity.

Audit Trails​

  • credit_transactions table maintains complete audit trail
  • kanban_card_activities logs all card changes
  • generation_logs tracks all code generation
  • Timestamp fields on all tables for change tracking

Configuration Management​

  • JSON columns store complex configuration
  • settings table for global configuration
  • Project-level settings override defaults
  • Form/report design data stored as JSON

Polymorphic Data​

Template variables support multiple languages via project_template_variable_values with language field allowing per-language overrides.

Performance Considerations​

Indexing Strategy​

  • Foreign key columns indexed automatically
  • Composite indexes on commonly filtered column pairs
  • Separate index on last_login_at for inactivity queries

Query Optimization​

  • Avoid N+1 queries through eager loading relationships
  • Use composite indexes for where clauses
  • Pagination required for large result sets

JSON Column Queries​

  • Avoid querying inside JSON columns when possible
  • Store structured data that benefits from relational queries in separate tables
  • Use JSON for semi-structured or configuration data

Database Migrations​

All database changes are managed through Laravel migrations in /database/migrations/. The migration naming convention is:

YYYY_MM_DD_HHMMSS_description_of_change.php

Migrations are organized into:

  1. Initial table creation (2026_02_01 batch)
  2. Foreign key additions (2026_02_01_094852 batch)
  3. Schema extensions and modifications (2026_03_xx)
