Overview​

The Form Designer is a visual WYSIWYG (What You See Is What You Get) form layout editor that allows users to create professional forms and windows for database applications. It combines visual design with property-based configuration to generate responsive, feature-rich forms.

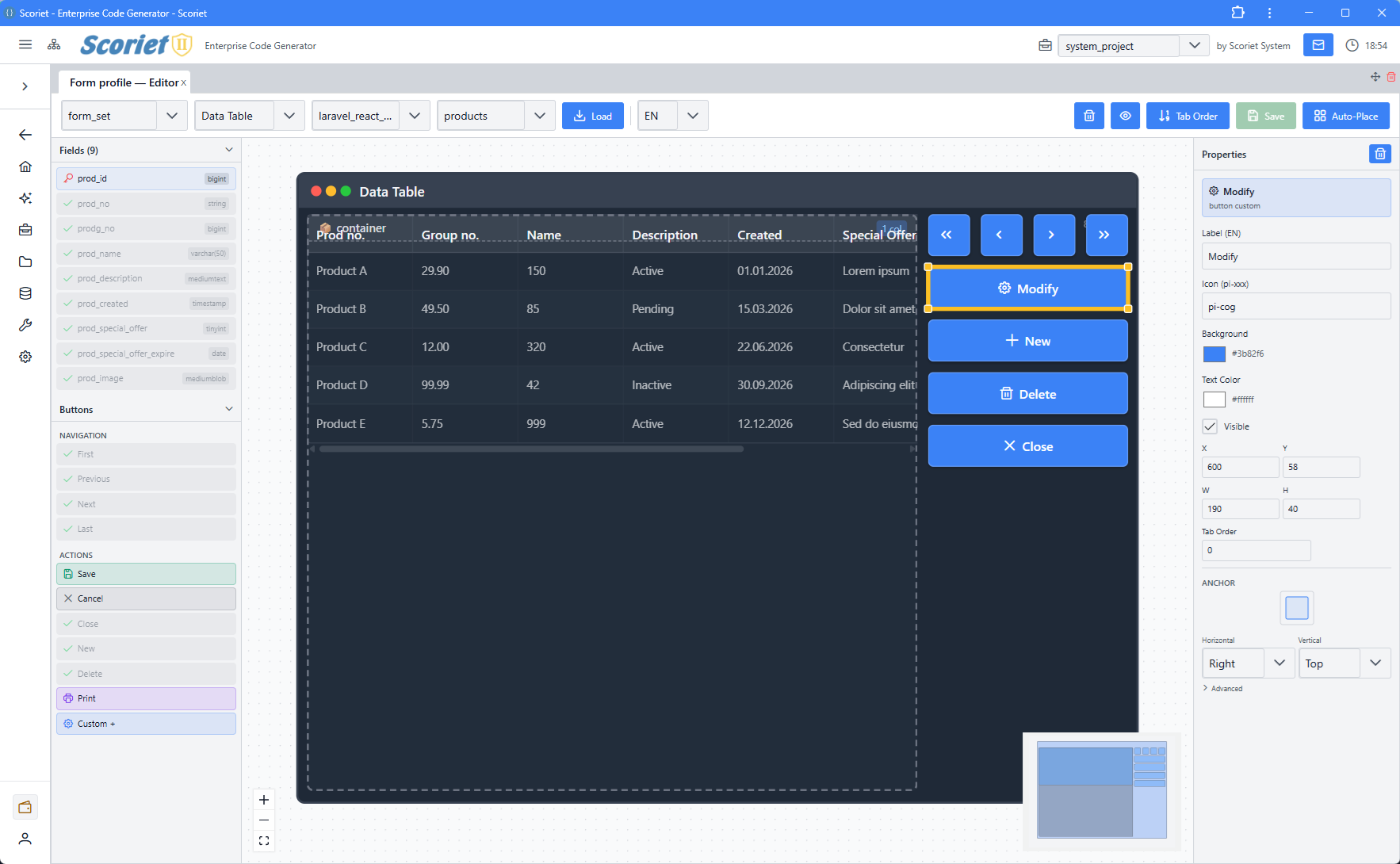

Form Designer The visual Form Designer with drag-and-drop element placement, property panel, and live preview

Key Features​

  • Visual Form Builder - Drag-and-drop interface for form design
  • Multi-Window Support - Create multiple window types (main menu, create/edit, data table)
  • Element Types - Containers, tabs, buttons, separators, and field placements
  • Grid Snapping - Precise positioning with optional grid alignment
  • Responsive Design - Anchor-based responsive layouts
  • Custom Colors - Per-window and per-element color customization
  • Tab Ordering - Define keyboard navigation order
  • Live Preview - See changes in real-time

Architecture​

FormDesignerPanel Component​

Location: resources/js/Components/Panels/FormDesignerPanel.tsx

The main designer panel handles:

  • Form set management (collections of related forms/windows)
  • Window type management (main_menu, create_edit, data_table)
  • Visual element placement using ReactFlow
  • Property editing for selected elements
  • Access control (feature locked behind credits/patron status)
interface FormSet {
  id: number;
  name: string;
  description?: string;
  creator_user_id: number;
  visibility: 'private' | 'team' | 'public';
  cloned_from_id?: number;
  default_background_color: string;
  default_window_color: string;
  default_text_color: string;
  default_button_color: string;
  default_button_text_color: string;
  is_active: boolean;
  windows?: FormWindow[];
  windows_count?: number;
}

interface FormWindow {
  id: number;
  form_set_id: number;
  name: string;
  display_name?: string;
  window_type: 'main_menu' | 'create_edit' | 'data_table';
  min_width: number;
  min_height: number;
  default_width: number;
  default_height: number;
  background_color?: string;
  window_color?: string;
  text_color?: string;
  is_active: boolean;
  sort_order: number;
  elements?: FormElement[];
}

Window Types​

Primary application menu window. Typically shows:

  • Navigation buttons
  • Application options
  • Main entry point

Default Dimensions:

  • Width: 800px
  • Height: 600px
  • Min Width: 400px
  • Min Height: 300px

create_edit​

Form for creating and editing records. Displays:

  • Input fields linked to database columns
  • Containers for field grouping
  • Save/Cancel buttons
  • Validation feedback

Default Dimensions:

  • Width: 600px
  • Height: 500px
  • Min Width: 300px
  • Min Height: 250px

data_table​

Tabular data display with inline editing. Features:

  • Column headers
  • Row data
  • Edit/Delete buttons
  • Sorting and filtering

Default Dimensions:

  • Width: 900px
  • Height: 600px
  • Min Width: 500px
  • Min Height: 400px

Form Elements​

Element Types​

interface FormElement {
  id?: number;
  form_window_id: number;
  element_type: string;  // See Element Type Reference
  x_position: number;
  y_position: number;
  width: number;
  height: number;
  sort_order: number;
  is_visible: boolean;

  // Element-specific properties (see below)
  ...
}

Container Elements​

container_simple​

Basic container for grouping elements.

{
  element_type: 'container_simple',
  container_orientation: 'vertical' | 'horizontal',
  container_gap: 10,  // Spacing between children
  container_columns?: 2  // Number of columns (if horizontal)
}

container_tab​

Tab container allowing multiple grouped views within one window.

{
  element_type: 'container_tab',
  max_fields: 5,  // Max fields per tab
  default_control_height: 25
}

container_grid​

Grid layout container for complex arrangements.

{
  element_type: 'container_grid',
  container_columns: 3,
  container_gap: 10,
  max_fields: 20
}

Button Elements​

{
  element_type: 'button_save',
  button_label: 'Save',
  button_icon: 'pi-save',
  button_action: 'save',
  button_background_color: '#10b981',
  button_text_color: '#ffffff'
}

Common Buttons:

  • button_save - Save data
  • button_cancel - Cancel edit
  • button_new - Create new record
  • button_delete - Delete record
  • button_nav_first - Navigate to first
  • button_nav_prev - Navigate previous
  • button_nav_next - Navigate next
  • button_nav_last - Navigate to last

Separator Elements​

{
  element_type: 'separator_horizontal' | 'separator_vertical',
  width: 100,
  height: 1,
  background_color: '#e5e7eb'
}

Field Placement​

Links database schema fields to form inputs:

{
  element_type: 'field_textinput' | 'field_number' | 'field_date' | etc,
  field_name: 'user_email',  // Links to schema field
  control_type: 'text' | 'number' | 'date' | 'dropdown',
  link_table?: 'users',  // For dropdown: lookup table
  link_field?: 'id',     // For dropdown: lookup field
  link_display_field?: 'name'  // For dropdown: display field
}

Grid Snapping​

Grid-based positioning ensures aligned layouts:

// Project settings control grid behavior
interface Project {
  form_designer_snap_to_grid: boolean;
  form_designer_grid_size: number;  // e.g., 10px
}

// Snap element position to grid
const snapToGrid = (position: number, gridSize: number) => {
  return Math.round(position / gridSize) * gridSize;
};

Anchoring (Responsive Layout)​

Anchor values define how elements resize when window size changes:

interface FormElement {
  // Anchor positions relative to right and bottom
  anchor_right?: number | null;      // Distance from right edge
  anchor_bottom?: number | null;     // Distance from bottom edge
  anchor_width?: number | null;      // Fixed or proportional width
  anchor_height?: number | null;     // Fixed or proportional height
}

// Anchor types:
// null = use position (left/top anchoring)
// number = distance from right/bottom edge

Common Anchor Patterns:

// Stretch horizontally
{
  x_position: 0,
  anchor_right: 0,  // Stick to right
  width: 100
}

// Fixed position, stretches right
{
  x_position: 10,
  anchor_right: null  // Ignore right, use position
}

// Bottom-right button
{
  x_position: undefined,
  y_position: undefined,
  anchor_right: 10,
  anchor_bottom: 10
}

Custom Styling​

Form Set Colors​

const formSet = {
  default_background_color: '#f8fafc',  // Page background
  default_window_color: '#ffffff',       // Window background
  default_text_color: '#1e293b',         // Text color
  default_button_color: '#2563eb',       // Button background
  default_button_text_color: '#ffffff'   // Button text
};

Per-Element Colors​

const element = {
  button_background_color: '#10b981',
  button_text_color: '#ffffff',
  background_color: '#f3f4f6',
  border_width: 1,
  border_color: '#d1d5db'
};

Tab Ordering​

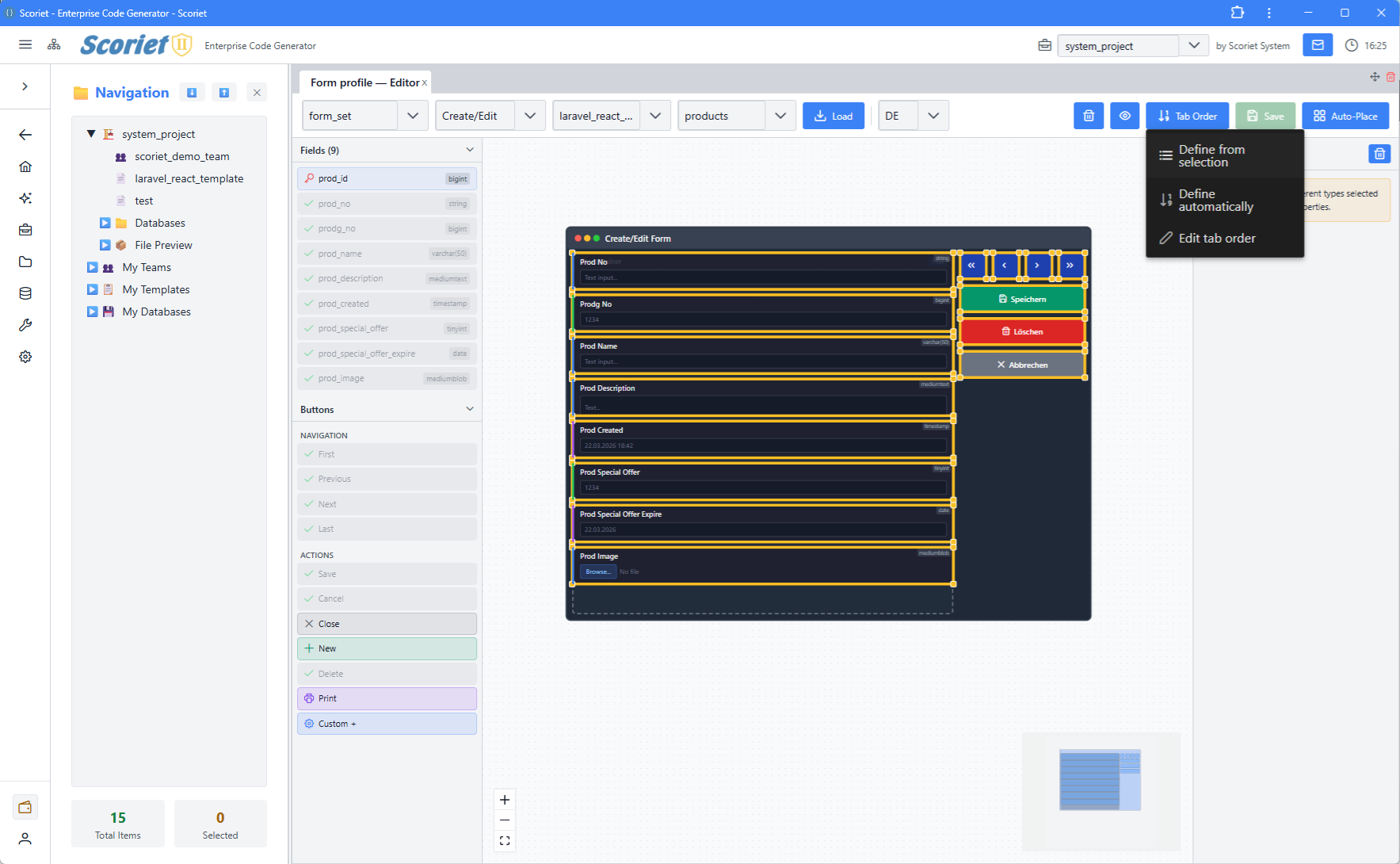

Form Designer Tab Order Setting the tab navigation order for form elements

Defines keyboard navigation sequence (Tab key):

const element = {
  tab_order: 1  // Order in tab sequence (1-based)
};

// Usage: User presses Tab → moves to next element by tab_order

Visibility Rules​

Control element visibility based on conditions:

const element = {
  is_visible: true,  // Can be toggled by JavaScript
  custom_style: {
    display: element.is_visible ? 'block' : 'none'
  }
};

Design Workflow​

1. Create Form Set​

Dashboard → New Form Set → Name: "Customer Forms"

2. Create Window​

Form Set → New Window → Select Type: "create_edit"
Configure: Name, dimensions, colors

3. Add Elements​

Window → Add Container → Add Fields → Add Buttons
Arrange visually on canvas

4. Configure Properties​

Click Element → Edit Properties Panel → Update styling
Set field links → Save

5. Preview​

Live Preview Mode → Test responsiveness → Adjust as needed

6. Publish​

Activate Form Set → Generate → Ready for application

API Endpoints​

Form Sets​

POST   /api/form-sets                    # Create new form set
GET    /api/form-sets                    # List form sets
GET    /api/form-sets/{id}              # Get form set details
PUT    /api/form-sets/{id}              # Update form set
DELETE /api/form-sets/{id}              # Delete form set
POST   /api/form-sets/{id}/clone        # Clone form set

Windows​

POST   /api/form-windows                 # Create window
GET    /api/form-windows/{id}           # Get window
PUT    /api/form-windows/{id}           # Update window
DELETE /api/form-windows/{id}           # Delete window

Elements​

POST   /api/form-elements                # Create element
GET    /api/form-elements/{id}          # Get element
PUT    /api/form-elements/{id}          # Update element
DELETE /api/form-elements/{id}          # Delete element

Access Control​

The Form Designer is a premium feature:

interface AccessStatus {
  has_access: boolean;
  access_type?: 'credits' | 'patron';
  patron_level?: string;
  credits_paid?: number;
  granted_at?: string;
  expires_at?: string;
  days_remaining?: number;
  is_patron?: boolean;
  is_expired?: boolean;
  can_renew?: boolean;
  unlock_cost?: number;
  user_credits?: number;
}

Access Methods:

  1. Patron Membership - Grants lifetime access
  2. Credit Purchase - One-time fee
  3. Trial - Limited-time access

Integration with Code Generation​

Forms are integrated into the code generation pipeline:

  1. Design Form → Form Designer
  2. Generate Template → Code Generator
  3. Deploy Code → Generated application includes the form
// Generated code references form configuration
const form = await loadForm('CustomerForm');
const ui = generateUI(form.elements, form.window_type);

Best Practices​

  1. Use Consistent Naming - Clear, descriptive window and element names
  2. Plan Responsive - Design for mobile first, then expand
  3. Group Logically - Use containers to organize related fields
  4. Color Consistency - Use form set default colors
  5. Test Responsiveness - Try different window sizes
  6. Version Control - Clone forms before major changes
  7. Document Fields - Add descriptions for field purposes

Common Patterns​

CRUD Form (Create/Edit/Delete)​

Window Type: create_edit
Elements:
  - Container (vertical)
    - Field: Name (textinput)
    - Field: Email (textinput)
    - Field: Status (dropdown)
    - Separator
    - Container (horizontal)
      - Button: Save
      - Button: Cancel

Data Table​

Window Type: data_table
Elements:
  - DataTable with columns:
    - Name
    - Email
    - Status
    - Actions (Edit/Delete buttons)

Multi-Tab Form​

Window Type: create_edit
Elements:
  - TabContainer
    - Tab 1: General Info
      - Field: Name
      - Field: Email
    - Tab 2: Settings
      - Field: Preferences
      - Field: Notifications

Troubleshooting​

Elements Not Appearing​

  • Check is_visible property
  • Verify z-index/layer ordering
  • Check color contrast (may be invisible on background)

Layout Breaking on Resize​

  • Review anchor configuration
  • Ensure responsive units (%, relative sizes)
  • Test with different viewport sizes

Fields Not Linking​

  • Verify field names match schema
  • Check link_table and link_field configuration
  • Ensure database connection is active

Next Steps​
