Messaging System

Overview

The Messaging System provides threaded, multi-recipient communication with broadcast support, file attachments, and activity tracking. Users can send direct messages, group messages to teams/projects, or broadcast to all users.

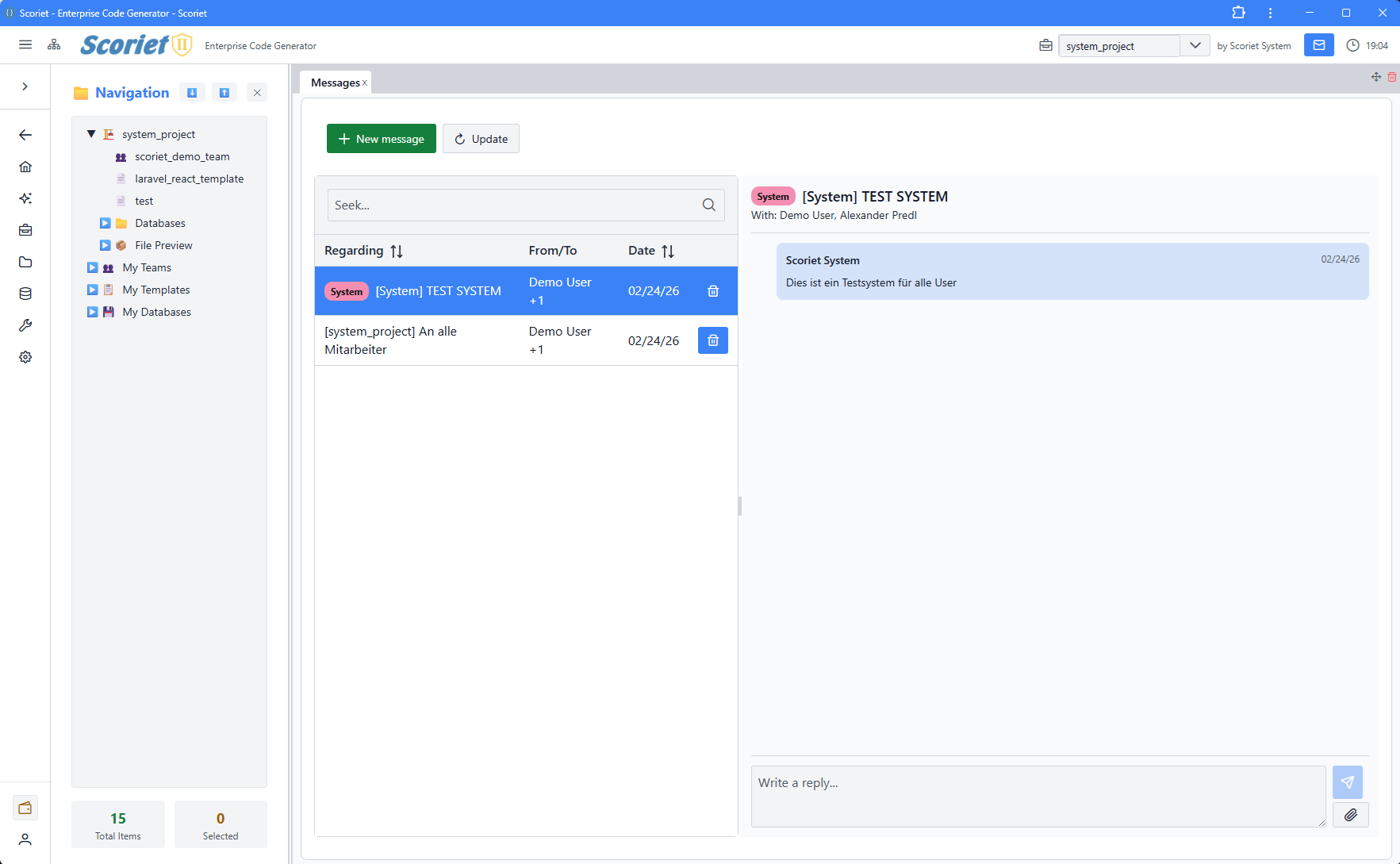

The Messaging panel with threaded conversations, recipients, and message history

Key Features

Threaded Messaging - Organize conversations by topic
Multiple Recipients - Individual, team, project, or broadcast
File Attachments - Share files in messages
Read Receipts - Track message reading via last_read_at
Message Search - Search across threads and content
Soft Delete - Participants can leave conversations
Activity Tracking - See who replied and when
Multi-language - Support for message body translations

Core Data Structures

interface Thread {
  id: number;
  subject: string;
  is_broadcast: boolean;
  creator_id: number;
  created_at: string;
  updated_at: string;
  latest_message?: Message;
  other_participants?: User[];
  has_unread?: boolean;
  messages?: Message[];
  participants?: ThreadParticipant[];
}

interface Message {
  id: number;
  thread_id: number;
  sender_id: number;
  body: string;
  created_at: string;
  updated_at: string;
  sender: User;
  attachments?: Attachment[];
  is_edited?: boolean;
}

interface Attachment {
  id: number;
  message_id: number;
  file_name: string;
  file_path: string;
  file_size: number;
  mime_type: string;
  created_at: string;
}

interface ThreadParticipant {
  id: number;
  thread_id: number;
  user_id: number;
  last_read_at?: string;
  deleted_at?: string;  // Soft delete
  role: string;
}

Recipient Types

Individual Messaging

Direct message between two users:

const thread = {
  subject: 'Project Discussion',
  is_broadcast: false,
  recipient_type: 'individual',
  recipient_id: targetUserId
};

Project Messaging

Message to all project members:

const thread = {
  subject: 'Project Update',
  recipient_type: 'project',
  project_id: projectId
};

// All project members receive

Team Messaging

Message to specific team within project:

const thread = {
  subject: 'Team Standup',
  recipient_type: 'team',
  team_id: teamId
};

Broadcast Messaging

Message to all users (admin only):

const thread = {
  subject: 'System Announcement',
  is_broadcast: true,
  recipient_type: 'broadcast'
};

// Permission check: requires broadcast capability

Read Receipts

Track when participants read messages:

interface ThreadParticipant {
  last_read_at: string | null;  // ISO timestamp
}

// Mark as read
const markAsRead = async (threadId: number) => {
  await fetch(`/api/threads/${threadId}/mark-read`, {
    method: 'POST',
    headers: { 'Authorization': `Bearer ${token}` }
  });
};

// Unread count
const unreadCount = threads.filter(t => !t.last_read_at).length;

// Who has read
const hasRead = (thread: Thread, userId: number) => {
  const participant = thread.participants.find(p => p.user_id === userId);
  return participant?.last_read_at &&
    new Date(participant.last_read_at) > new Date(thread.updated_at);
};

Message Features

Reply to Thread

const handleReply = async (threadId: number, body: string) => {
  const response = await fetch(`/api/threads/${threadId}/messages`, {
    method: 'POST',
    body: JSON.stringify({ body }),
    headers: {
      'Authorization': `Bearer ${token}`,
      'Content-Type': 'application/json'
    }
  });

  return await response.json();
};

File Attachments

Attachments are a premium feature for patron users:

interface AttachmentAccess {
  has_access: boolean;
  is_patron: boolean;
  is_system?: boolean;
  subscription_ends_at?: string;
  user_credits?: number;
}

// Check before uploading
const checkAttachmentAccess = async () => {
  const response = await fetch('/api/messages/attachment-access', {
    headers: { 'Authorization': `Bearer ${token}` }
  });
  return await response.json();
};

// Upload with message
const sendWithAttachments = async (threadId: number, body: string, files: File[]) => {
  const formData = new FormData();
  formData.append('body', body);
  files.forEach((file, i) => {
    formData.append(`attachments[${i}]`, file);
  });

  await fetch(`/api/threads/${threadId}/messages`, {
    method: 'POST',
    body: formData,
    headers: { 'Authorization': `Bearer ${token}` }
  });
};

Edit Message

const handleEditMessage = async (messageId: number, newBody: string) => {
  await fetch(`/api/messages/${messageId}`, {
    method: 'PUT',
    body: JSON.stringify({ body: newBody }),
    headers: {
      'Authorization': `Bearer ${token}`,
      'Content-Type': 'application/json'
    }
  });
};

Delete Message

Soft delete removes message from participant's view:

const handleDeleteMessage = async (messageId: number) => {
  await fetch(`/api/messages/${messageId}`, {
    method: 'DELETE',
    headers: { 'Authorization': `Bearer ${token}` }
  });
};

Thread Management

Create Thread

const createThread = async (subject: string, recipientType: string, recipientId?: number) => {
  const response = await fetch('/api/threads', {
    method: 'POST',
    body: JSON.stringify({
      subject,
      recipient_type: recipientType,
      recipient_id: recipientId
    }),
    headers: {
      'Authorization': `Bearer ${token}`,
      'Content-Type': 'application/json'
    }
  });

  return await response.json();
};

Leave Thread

Soft delete participant from thread (thread remains for others):

const leaveThread = async (threadId: number) => {
  await fetch(`/api/threads/${threadId}/leave`, {
    method: 'POST',
    headers: { 'Authorization': `Bearer ${token}` }
  });
};

Archive Thread

Mark thread as archived for organization:

const archiveThread = async (threadId: number) => {
  await fetch(`/api/threads/${threadId}`, {
    method: 'PUT',
    body: JSON.stringify({ is_archived: true }),
    headers: {
      'Authorization': `Bearer ${token}`,
      'Content-Type': 'application/json'
    }
  });
};

Search & Filtering

Search Threads

const searchThreads = async (query: string) => {
  const response = await fetch(`/api/threads/search?q=${encodeURIComponent(query)}`, {
    headers: { 'Authorization': `Bearer ${token}` }
  });

  return await response.json();
};

// Searches: subject, message body, sender name

// Unread only
threads.filter(t => t.has_unread);

// From specific user
threads.filter(t => t.latest_message?.sender_id === userId);

// Broadcast messages
threads.filter(t => t.is_broadcast);

// Recent threads (last 7 days)
threads.filter(t =>
  new Date(t.updated_at) > new Date(Date.now() - 7 * 24 * 60 * 60 * 1000)
);

User Suggestions

Autocomplete Recipients

const searchUsers = async (query: string) => {
  const response = await fetch(`/api/users/search?q=${encodeURIComponent(query)}`, {
    headers: { 'Authorization': `Bearer ${token}` }
  });

  return await response.json();
};

// Show matching users
const userSuggestions = await searchUsers('john');
// Returns: [ { id: 1, name: 'John Doe', username: 'john.doe' }, ... ]

Real-time Updates

WebSocket Subscriptions

// Subscribe to thread
const channel = getEcho().channel(`thread.${threadId}`);

channel.listen('MessageSent', (data) => {
  addMessage(data.message);
  markAsRead(threadId);
});

channel.listen('UserTyping', (data) => {
  showTypingIndicator(data.user.name);
});

channel.listen('MessageDeleted', (data) => {
  removeMessage(data.message_id);
});

API Endpoints

# Threads
GET    /api/threads                      # List user threads
POST   /api/threads                      # Create thread
GET    /api/threads/{id}                 # Get thread
PUT    /api/threads/{id}                 # Update thread
POST   /api/threads/{id}/leave           # Leave thread
POST   /api/threads/{id}/mark-read       # Mark as read

# Messages
GET    /api/threads/{id}/messages        # Get messages (paginated)
POST   /api/threads/{id}/messages        # Send message
PUT    /api/messages/{id}                # Edit message
DELETE /api/messages/{id}                # Delete message

# Attachments
GET    /api/messages/attachment-access   # Check attachment permission
DELETE /api/attachments/{id}             # Delete attachment

# Search
GET    /api/threads/search?q=...         # Search threads
GET    /api/users/search?q=...           # Search users

Permission Model

Message Creator

Edit own messages
View all messages in thread
Delete message (soft delete)

Thread Participants

Read messages
Reply to thread
See participant list
Mark as read
Leave thread

Non-Participants

Cannot see thread
Cannot join unless invited

Broadcast Recipient

Read-only access
No reply option (may change)

Best Practices

Use Clear Subjects - Help find conversations later
Keep Threads Focused - One topic per thread
Search Before Creating - Avoid duplicate threads
Check Attachments - Know feature limitations
Archive Old Threads - Keep inbox organized
Use Appropriate Recipients - Don't over-broadcast
Respond Promptly - Don't leave colleagues waiting
Reference Messages - Quote when necessary

Common Use Cases

Project Update

Recipients: Project Subject: "Weekly Progress Report" Message: Summary of accomplishments and blockers

Team Decision

Recipients: Team Subject: "Technology Stack Recommendation" Attachments: Comparison document

One-on-One

Recipients: Individual User Subject: Discussion topic Private conversation with colleague

System Announcement

Recipients: Broadcast (admin only) Subject: "Scheduled Maintenance Notice" Inform all users of important updates

Troubleshooting

Messages Not Appearing

Check WebSocket connection
Verify participant status
Refresh page

Attachments Not Uploading

Check patron/credit status
Verify file size limits
Confirm file type allowed

Unread Status Not Updating

Check read receipt sync
Verify last_read_at timestamp
Refresh thread

Next Steps

Kanban Board - Task management
Team Management - Manage users
Project Settings - Configure communication
